Intelligent Rack PDU 3 Phase WYE 24 ports 16A

FOB Reference Price:Get Latest Price
US $1-1,000 / Pieces
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
Digipower
Model Number:
PTV-1640C-24N3
Model Name:
Bravo PDU
Nominal Voltage:
400V AC, 3-Phase 3P+N+PE
Max. Output Current:
16 Amp
Output:
IEC 320 C13 x 21, C19 x 3
Input:
1 x IEC 309 attached power cord, 3 meters long
Power Monitor:
Meter, Web, SNMP, Free Bundle Software
Product Description

 Intelligent Rack PDU 3 Phase WYE 24 ports 16A



Features :

  • Built-in web server, manager can real time to monitoring the current consumption of the power strip.
  • Build-in true RMS current meter.
  • Setup easily, meter can read the IP address directly.
  • Provide audible alarm when the power consumption over the the setting of warning and overload.
  • Send the email and traps when the power consumption exceed the trigger value of warning or overload to the PDU.
  • Provide utility, it can monitor a large mount of PDU at the same time.
  • Support the SNMP and provide MIB for the PDU to be monitored by NMS.
  • Provide power protection by the circuit breaker.



Specification
General
Output(21) IEC320 C13
(3) IEC320 C19
Input(1) IEC320 309 attached power cord, 3 meters long
Protection(3) 16 AMP branch type breaker
Communication
DHCP Indication(1) Green LED
Circuit Status(3) Red LED
Output Status(24) Green LED
Network(1) RJ45 for Ethernet
Temp./Humidity (1) RJ11 for ENV probe connection
PDU ID 1 Digits Seven Segments for PDU Identification
Current Meter3 Digits Seven Segments for True RMS Meter
Range: 0A ~ 20 A
Resolution: 0.1A
Precision: +/-2%+/-0.1AMP
Operation
Nominal Voltage400V AC, 3-Phase 3P+N+PE
Voltage230V
Frequency50/60HZ full range
Load Capacity11.1 kVA
Max. Input Current16 Amp
Max. Output CurrentIEC 320 C13: 10A
(Outlet)IEC 320 C19: 16A
Max. Output Current16 Amp
(Bank)
Temperature0 ~ 40 Celsius degree
Humidity0% ~ 90%
Size56 x 1645 x 44 mm
Weight7 kg
Optional Accessories

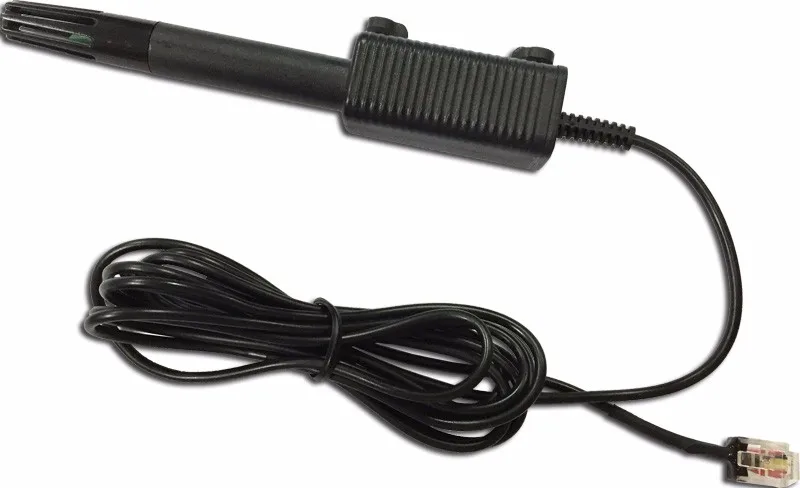

Temperature and Humidity Probe

Model number: CPM-ENV-2

Specification:

Hardware

External Interface:RJ11 6pin plug, 1.8m length cord

Temperature

Measurement Range: -30~70.0 celsius degree

Resolution: 0.1 celsius degree

Accuracy: +/-1 celsius degree

Humidity

Measurement Range: 0~100%

Resolution: 0.1%

Accuracy@ 5~60 celsius degree, 20%~80% : +/- 3%

Accuracy@ other condition: +/-5%

Sampling Rate: 1 second

Operation

Operating Temperature: 0~50.0 celsius degree

Storage Temperature: -20.0~60.0 celsius degree

Size: 22 x 20 x 127 mm

Net weight: 41 g

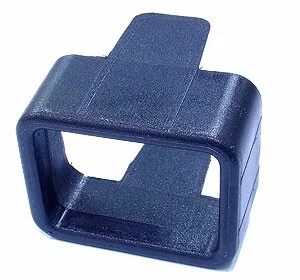

Socket Protection

STR-C20-B

Strain19 Plug




STR-C19-B

Strain C20 Plug




Warranty
