Product Description
Smart Current meter, individual circuit, Amp monitor
Features
- Cost saving for software installation
- IPP-L series provides free central management utility to monitor group of IPP-L series, saving a lot time and cost to build up management system.
- Various methods to manage power information
- User may monitor power consumption on web and utility.
- Current Range
- The current range is 0.5A-20A.
- High Precision
- The accuracy rate of current measurement is within ±2.0%
- Remote Monitor
- IPP-L series may remotely monitor power consumption Via TCP/IP and SNMP; it reads current information of each loop once a second.
- Reliability
- After installation all wiring and terminals are protected by terminal cover. IPP-L series also grants FCC & CE EMC certification.
Function:
- True RMS Current Metering & Reporting
- Circuit Breaker Protection
- Local LED Displays Amps, IP Address
- Alarm Threshold Sensing
- User Defined Alarm Thresholds
- Alarm Notification via Email, SNMP, LED and Audible Alarm.
- SNMP Support.
- SSL Web Browser (Https)
- Remote Current Monitor Each Circuit.
- Ready for ENV to Measure Temperature and Humidity
- Free Bundle Management Utility.
Specification
Interface | Number | Function | Protocol/Specification |
RJ45 | 1 | 10MEthernet | ICMP, ARP, IP, TCP, UDP, DHCP, HTTP, HTTPS, SNMPv1 |
RJ11 | 1 | ENV Connection | private |
Button | 1 | Function | 1 beep:Current, Temp./Humidity Display 2 Beeps:IP Display. 4 Beeps:DHCP/Fixed 6 Beeps:Reset to Default |
Seven Segments | 3 digits | Current | True RMS Meter Range: 0A ~ 20 A Resolution: 0.1A Precision: +/-2%+/-0.1AMP |
IP | Press Button after 2 Beeps will display PDU IP Address |
1 Digit | ID | 0: Total Current 1~8: Individual Outlet Current t: Temperature h: Humidity |
Yellow LED | 1 | | ON: SSL is enabled |
Green LED | 1 | DHCP | ON: DHCP is enabled |
Red LED | 8 | Circuit Status | Flash: load exceed the warning threshold ON: load exceed the overloadthreshold Off: Normal |
General |
Output | 8 | | Terminal Block |
Input | 8 | | Terminal Block |
Circuit Breaker | 8 | | 20 Amp |
Nominal Voltage | | | 100-240V |
Max. Output current | | Each Circuit | 20 Amp |
Frequency | | | 50/60HZ full range |
Operation |
Temperature | | | 0 ~ 45 Celsius degree |
Humidity | | | 0% ~ 90% |
Size | | | 432x217x47 mm |
Weight | | | 4 kg |

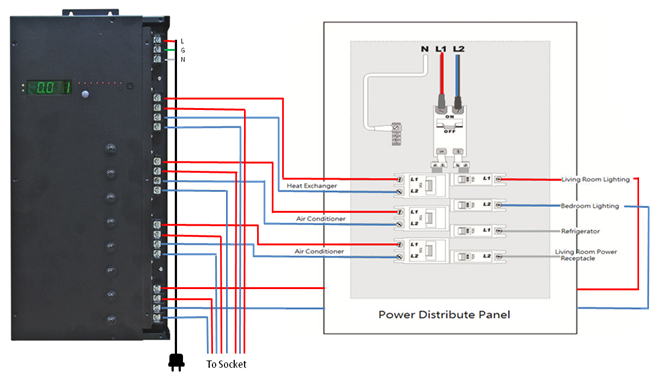

Diagram
