Data Center intelligent Power distribution Unit multichannel energy meter monitor
Cost saving for software installation
IPP series provides free central management utility to monitor group of IPP series, saving a lot time and cost to build up management system.
Various method to manage power information
User may monitor power consumption on web, utility and APP.
Hot line installation

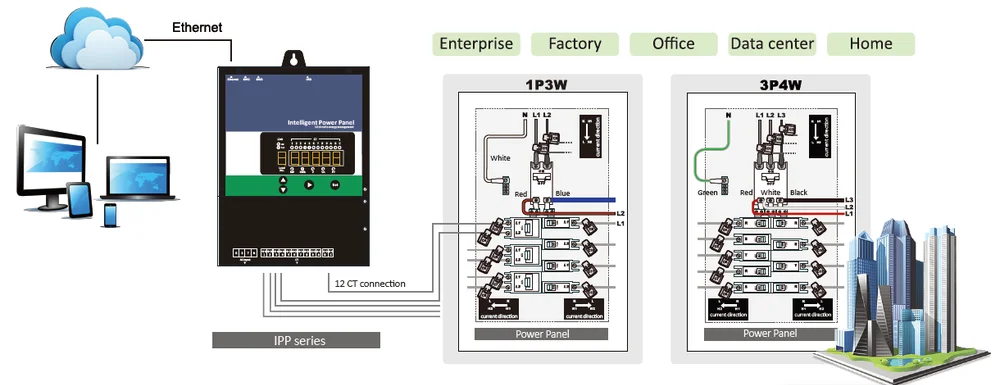

IPP series provide CT clamps for installation on the monitored circuit. The installation could be executed under power-on status.
Dedicated Loops Measurement
There are 12 built-in measurement modules. Each module with independent and complete power measurement capabilities, provides real time measurement data.
12 measurement modules may be configured optionally as single-phase, three-phase power or a combination of hybrid.
Each loop may measure single and three-phase of the real time voltage (V), current (A), power (W), power factor (PF) and the tantalization of kWh, kVARh, kVAh.
The voltage range is 60V-440V (50 / 60Hz.); the current range is 0.5A-50A and maximum to 200A.
Active power measurement shows 0.001kW-50kW; energy measurement displays. 001kWh-99999 kWh.
IPP series adopts U.S. high-precision industrial microprocessor with a ferroelectric memory (FRAM), being free from power outages and restriction of erase/write cycles. It is highly anti-noise and reliable on saving data.
The accuracy rate of kWh measurement is within ±1.0% (@PF=1.0, Rated Current), and W, V, A, VA, PF within ±1.0% (@Rated Current).
IPP series may remotely monitor power consumption Via TCP/IP and SNMP; it reads complete power information of each loop once a second.
IPP series adopts indirect measurement through PT and CT, isolated from measurement device. After installation all wiring and terminals are protected by terminal cover. IPP series also grants FCC & CE EMC certification.
Low power consumption
The power consumption of IPP series is less than 3W.
12 power monitoring modules with 1P2W
220V / 60Hz
5 digits LED display power information and IP address in turn; 1 digit LED load number
