Automatic Transfer Switch 30A 115V, Per outlet switch and monitor

FOB Reference Price:Get Latest Price
US $1-800 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Model Number:
ATB-3011M-08N2
The Max. Current:
30A
Voltage:
115V
Output:
8 x NEMA5-15/20R
Input:
2 x NEMA L5-30P
Output Protection:
2 x 20 Amp Breakers
Packaging & Delivery
Port
Tawian
Product Description

  Automatic Transfer Switch 30A 115V, IEC C13, Outlet Switch and Monitor

System

  • Built-in Web Server to Support Remote Power Management.
  • 10/100 Base-T Ethernet Port
  • IPv4 and IPv6 Support
  • SNMP Control (v1,v2c,v3)
  • Telnet, SSHv2 Encryption Support
  • Radius Authentication
  • User Account for Three Different Permissions Management System
  • Alarm Notification via Email, SNMP, Syslog, LED or audible alarm
  • 256 bits SSL Web Browser (Https) for Set Up and Operation
  • IP Address Filtering
  • Max. of 5000 entries for each Power Consumption Data and Event Log
  • Remote firmware Upgrade Support
  • Alive of Heart Beat Trap Available.
  • Definable Reset Button
  • Fahrenheit and Celsius Switchable
  • Export and Import PDU Configuration

Power Management

  • Dual input powers provide smart redundant power protection.
  • True RMS Current Measurement.
  • Provide Voltage, Frequency, Power Factor, Active power, Apparent Power and kWh information.
  • Remote Per Outlet On/Off Power Switching
  • Remote Per Outlet Current Monitoring
  • User Defined Alarm Thresholds for Warning and Overload.
  • User Defined Power On/OFF Sequence Time.
  • Timed & Scheduled On/Off/Reboot Switching
  • Alternative Outlet Restart Mode: Memorized Previous Status, Always On or Always Off
  • Ping-No-Answer Alarm
  • Outlet Action via Pre-Set Event, Including Power Event, Environment Event and Receiving Trap from Other Devices.

Specification

InterfaceNumberFunctionProtocol/Specification
RJ45110/100M EthernetICMP, ARP, IP, TCP, UDP, DHCP, HTTP, HTTPS, SNMPv1v2v3, SSH
RJ112ENV Connection
Reser Hole1Hardware Reset
Button1Function

1 beep:Current, Temp./Humidity Display
2 Beeps:IP Display.
4 Beeps:DHCP/Fixed

6 Beeps:Reset to Default
Seven Segments4 digitsInformationCurrent/Temperature/Humidity/IP Address Disaply
Green LED2 Input Status
Green LED2 Output Status
Red LED8 PDU Status
Green LED8 Outlet On/Off Status
Yellow LED1 ON: SSL is enabled
Green LED1 ON: DHCP is enabled
Power Information Precision

Current



True RMS Meter

Range: 0.2A ~ 32 A

Precision: +/-2%+/-0.1AMP
Voltage  +/- 2% +/- 1V @90V~260V
Active Power  +/- 2% +/- 5W @50W~5000W
Apparent Power  +/- 2% @50VA~5000VA
Frequency  +/- 2% @45~65Hz
Power Factor  +/- 0.02 @0.5~1.0
kWh Information Precision
kWh

0.001kWh~99999.999kWh

(+/- 2% @50W~5000W) kh=1.0

General
Output Socket8 NEMA 5-15/20R
Input Plug2 Attached NEMA L5-30P plugs 3 Meters
Nominal Voltage   110V-130V
On-Line Voltage  100V~143V
Overload Protection2 20 Amp UL489 Breaker
Frequency   50/60HZ full range
Max. Output Current  30 Amp
Transfer Time  8~16ms
Operation
Temperature  0 ~ 45 Celsius degree
Humidity  0% ~ 90%
Size  432 x 458 x 44.5 mm
Weight  8 kg



Optional Accessories

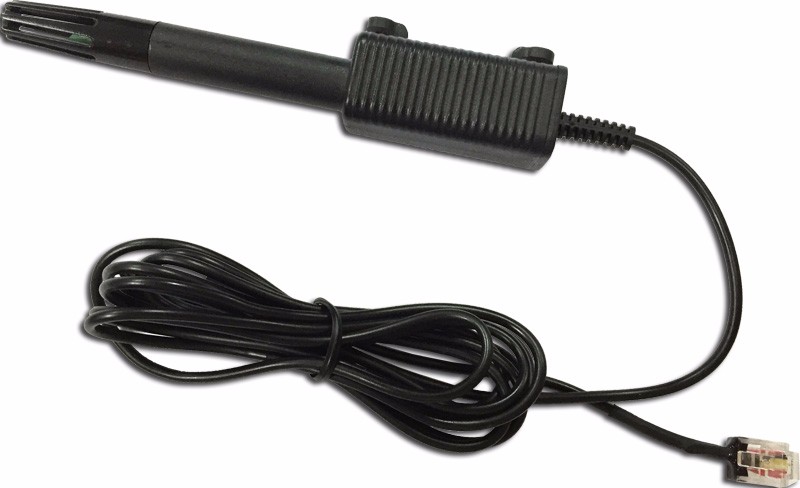

Temperature and Humidity Probe

Model number: CPM-ENV-2

Specification:

Hardware

External Interface:RJ11 6pin plug, 1.8m length cord

Temperature

Measurement Range: -30~70.0 celsius degree

Resolution: 0.1 celsius degree

Accuracy: +/-1 celsius degree

Humidity

Measurement Range: 0~100%

Resolution: 0.1%

Accuracy@ 5~60 celsius degree, 20%~80% : +/- 3%

Accuracy@ other condition: +/-5%

Sampling Rate: 1 second

Operation

Operating Temperature: 0~50.0 celsius degree

Storage Temperature: -20.0~60.0 celsius degree

Size: 22 x 20 x 127 mm

Net weight: 41 g

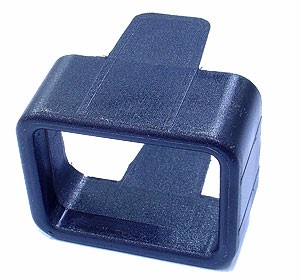

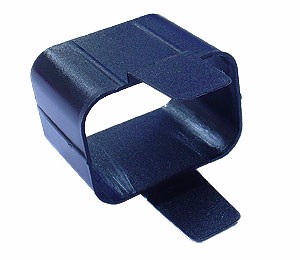

Socket Protection

STR-C20-B

Strain19 Plug



STR-C19-B

Strain C20 Plug



Warranty

Digipower Manufacturing Inc. extends a two-year limited warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use and service, and any failure to perform substantially in accordance with the product's User Manual. This warranty does not cover any product failure which results from accident, abuse, misapplication, or alteration. Incidental and consequential damages are not covered by this warranty and are not the responsibility of Digipower Manufacturing Inc. For additional or more specific warranty issues, please contact our sales. All repair and return shipments must be approved by Digipower Manufacturing Inc. and must be accompanied by an RMA (return merchandise authorization) number and dated proof of purchase.
